3D Piping Design

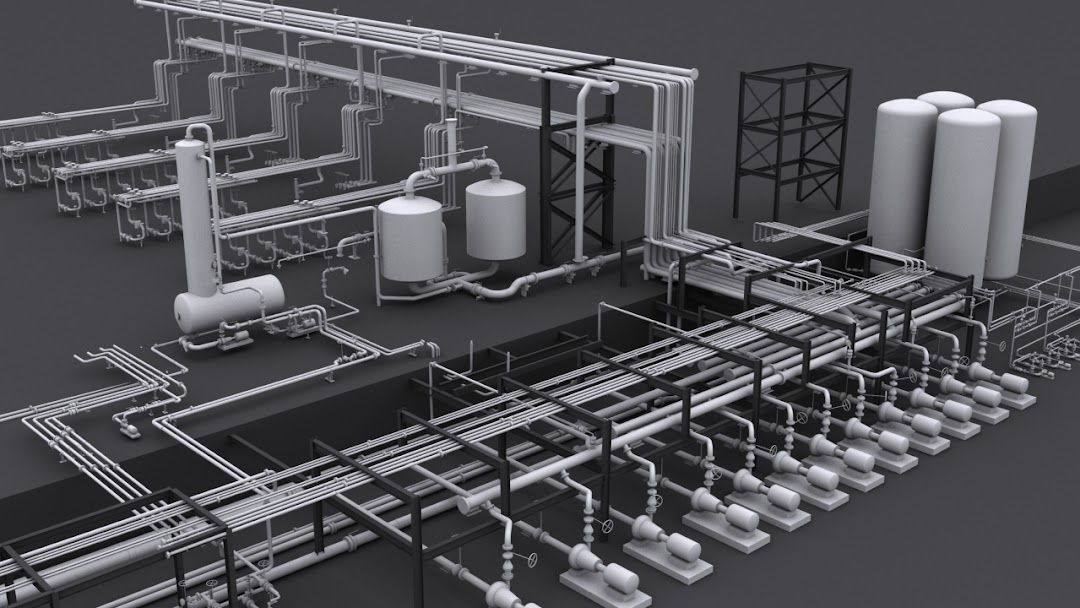

3D piping design provides a complete spatial model of piping systems, ensuring every route, support, and tie-in is coordinated before fabrication begins.
We build constructability-ready models that reduce site rework and improve multidisciplinary coordination.
Our team focuses on clash detection, access validation, and field-fit accuracy, providing teams with confidence before construction.
Models are delivered with clear design intent so downstream teams can interpret, fabricate, and install efficiently.
This approach reduces installation delays and supports safer, cleaner site execution.
Service Highlights
- Clash detection and interference resolution
- Constructability-focused layout coordination
- Fabrication-aligned routing standards
Typical Deliverables
- 3D routing models
- Clash detection outputs
- Constructability reviews
Expected Outcomes
- Fewer site revisions
- Better field coordination
- Higher installation accuracy
Need help scoping this service?
Share your project requirements and we will tailor the scope to match.
